ASTM B209 AA5454 Alloy Mirror Aluminum Plate Cylindrical Tank

  • 1
  • 2

Contact Now

ASTM B209 AA5454 Alloy Mirror Aluminum Plate Cylindrical Tank
ASTM B209 AA5454 Mirror-finished Aluminum Plate Wholesaler Liquid Tankers
5454 mirror sheets offer a balanced combination of lightness, corrosion resistance, and hygiene,

Tank Body: 5454-H32 mirror sheet (3-6mm thickness), welded without coating.

Our Company
  • We have implemented standardized processes to enhance work efficiency, reduce confusion, minimize errors, and boost overall productivity.
  • A comfortable and well-lit work environment fosters positive work attitude, healthy relationships, and sustained team growth motivation.

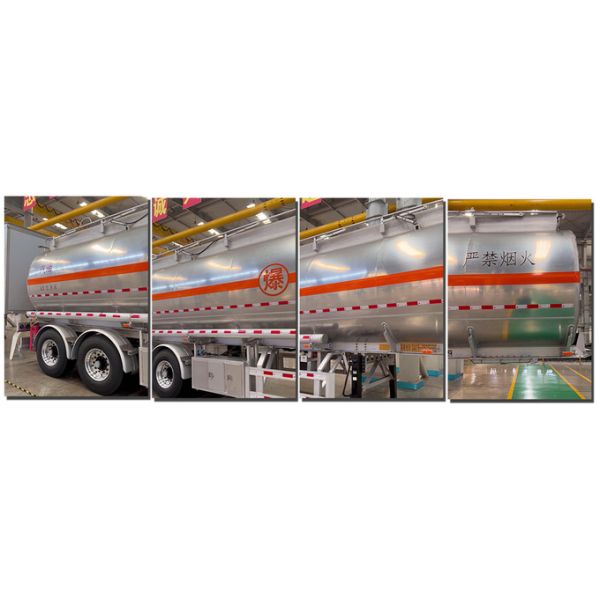

5454 Alloy Material Tank Trailers Sample in Our Warehouse
ASTM B209 AA5454 Alloy Mirror Aluminum Plate Cylindrical Tank
Manufacturing Process:
Extruding, Rolling, Machining, Hydraulic Pressure Bulging
Specification:
12790×2500×3900mm
  • Lighter weight, bigger volume, fuel efficiency, reduces CO₂ emissions and environmental protection.
  • The girder has higher overall strength because of once shaping extrusion profile technique, high strength, low center of gravity, good safety performance, excellent corrosion resistance.
  • High recovery, low maintenance cost.
Specifications Comparison
Spec/Model Aluminum Tank Trailer Same Level Steel Structure Trailer
Weight 6.5T 11.2T
Material Recovery 100% 85%
Our Factory Equipment
Code Name Brand
a aluminum ingot melting furnace GAUTSCHI (Switzerland)
b 2800mm width single stand cold rolling mill SMS Group (Germany)
c 4 continuous hot rolling mills SMS Group (Germany)
d heavy crop and dividing shear SMS Group (Germany)
e coil material annealing furnace SMS Group (Germany)
f all automatic three-dimensional elevated warehouse Dematic (USA)
Ocean Shipping
For oversize sheet, we use Flat Rack Container
  1. We use suitable securing material to firmly fix the aluminum plates to the flat rack.
  2. To prevent possible exposure to seawater or rain, we cover the entire cargo with waterproof tarps.
  3. We ensure sheets are loaded with a low and evenly distributed center of gravity to avoid tilting during transportation.
Key Characteristics
  • Alloy Type: Al-Mg alloy (5xxx series) with 2.4-3.0% Mg and 0.5-1.0% Mn, offering excellent corrosion resistance and medium-high strength.
  • Mirror Finish: Achieved via mechanical/electropolishing, enhancing aesthetics and cleanability.
  • Weldability: Compatible with MIG/TIG; post-weld heat treatment unnecessary.
Comparison with Other Alloys for Tankers
Property 5454 5083 6061
Strength Medium (H32: 250-300 MPa) High (H321: 270-350 MPa) Medium (T6: 310 MPa)
Corrosion Resistance Excellent (especially vs. chlorides) Excellent (marine-grade) Good (requires anodizing)
Weldability Excellent Excellent Good (PWHT needed)
Cost Moderate Moderate Low
Typical Use Food/chemical tankers Ships/pressure vessels Truck frames
Tanker Truck Applications
  • Tank Body: 5454 mirror sheet (3-6mm thickness), welded without coating.
  • Interior: Mirror polish reduces liquid retention, meeting sanitary standards.
  • End-Use: Food transport (edible oils), mild chemicals (pH-neutral).


Quality ASTM B209 AA5454 Alloy Mirror Aluminum Plate Cylindrical Tank wholesale
